Drive system, clamping architecture, mold access and motion sequence all change how a machine fits the job. Start with the production requirement, then narrow the configuration.

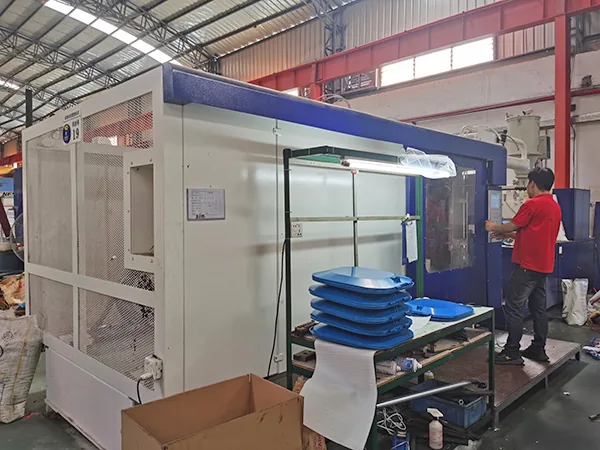

Architecture selection still depends on controlled drawings, the configured injection and clamping units, mold access, utilities, interfaces and the intended acceptance test. The photograph is used only to make those physical review questions concrete.
Repeatability, clean operation and precise simultaneous motion are central.
A versatile, general-purpose processing window and capital fit are priorities.
The project uses a large mold, large part or higher clamp-force class.
Insert loading, overmolding and operator or robot access shape the cell.
Cycle time, plasticizing, ejection and automation must work as one fast cell.
Two or more materials, colors or injection positions are required.
Follow the commercial route, selection sequence and two-sided fit check before asking engineering to confirm a configuration.
Keep architecture comparisons conditional on the same mold, cycle, utilities and acceptance basis. Then carry the selected route into installation and test planning.
Verify clamp and injection-unit demand, match plasticizing hardware to the exact resin, then compare cost and future production handoff on the same configured machine.
Compare candidate machines against the same engineering fields before selecting a model or locking the production-cell scope.
| Decision field | Why it matters | What to review |
|---|---|---|
| Injection unit | Shot volume, pressure, plasticizing and resin compatibility. | Shot-size calculation and screw/resin fit |
| Clamping unit | Mold fit, projected area, access, daylight and ejection. | Platen drawing and mold-fit check |
| Drive & motion | Cycle sequence, repeatability, utilities and maintenance. | Cycle sequence and utility demand |
| Integration | Robot, core pull, auxiliaries, MES and local interfaces. | Interface and option list |
| Compliance | Destination-market safety and documentation requirements. | Destination-market document scope |
Start with the part drawing, mold envelope, material and output target. A model comes after those inputs.
